CKP > CLOSE LOOP

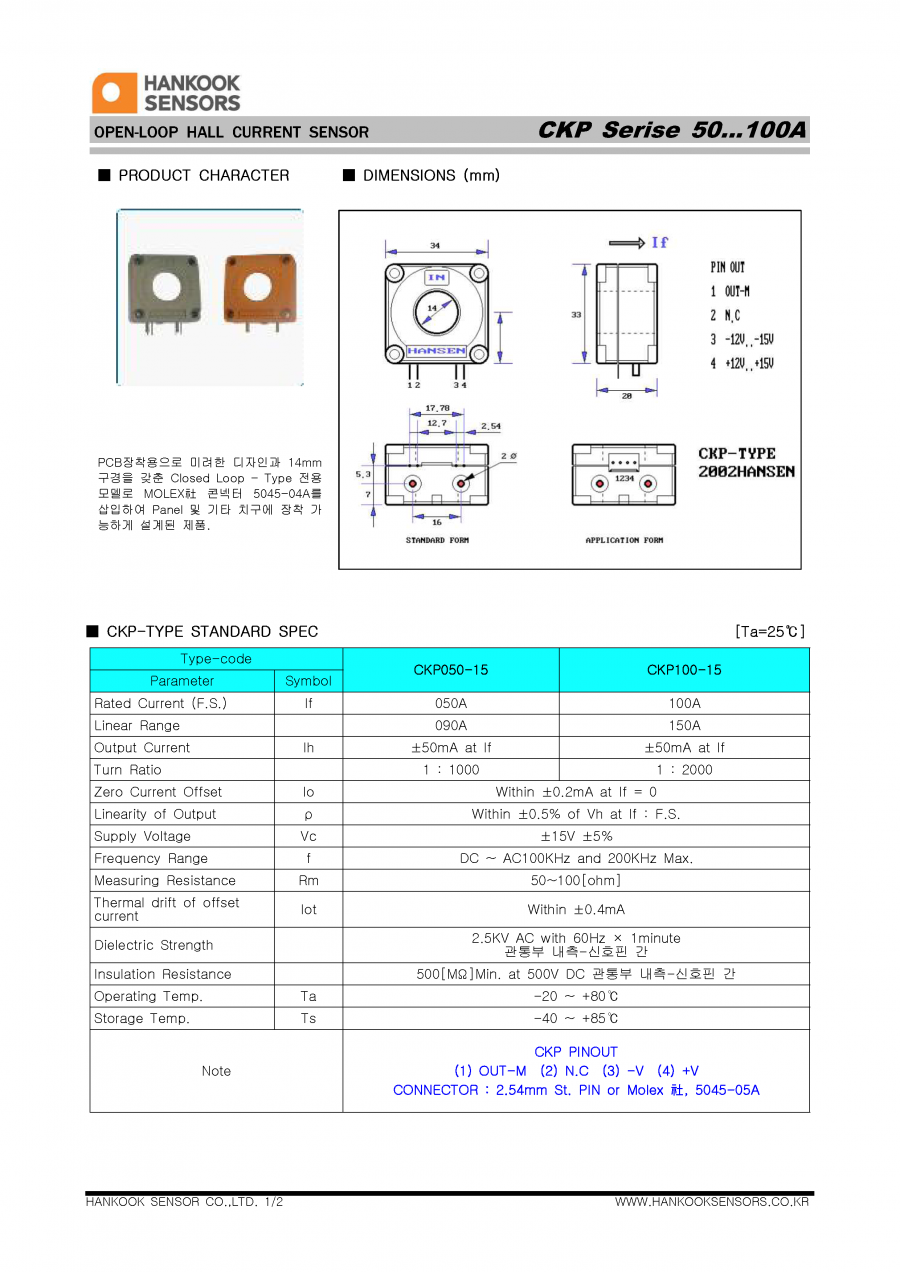

CKP

• Rated Current (F.S.) : ±50A , ±100A
• Output Current : ±50mA at If
• Turn Ratio 1 : 1,000 1 : 2,000
• Zero Current Offset : Within ±0.2mA at If = 0
• Linearity of Output : Within ±0.5% of Vh at If : F.S
• Supply Voltage : ±15V ±5%
• Frequency Range : DC ~ AC100KHz and 200KHz Max.
• Measuring Resistance : 50~100[ohm]
