SDR

  • Rated Current (F.S.) : ±40A ~ ±600A
  • Output Voltage : (VCC/5)×(2.5+2)[V] ±1.5% at If
  • Zero Current Offset : VCC/2[V], Within ±25mV at If = 0
  • Linearity of Output : Within ±1.5% of Vh at If : F.S.
  • Supply Voltage : +05V ±5%
  • Vh - Response Time : 2ms Max, 10μs Max
  • Frequency Range : DC ~40Hz, 1kHz
  • Load Resistor : above 4.7KΩ
  • Load Capacitance : 0.33(Min.)-10(Typ.)-1,000(Max.) nF

본문

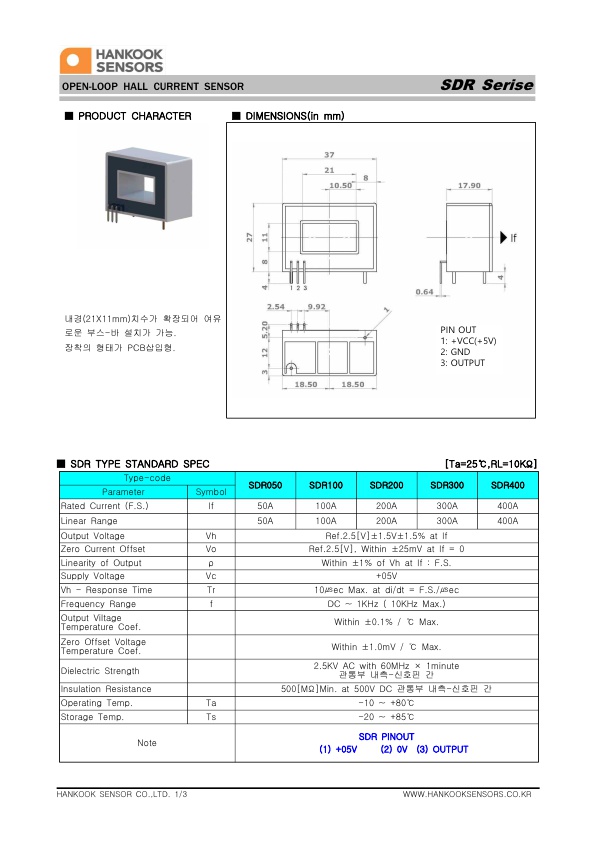

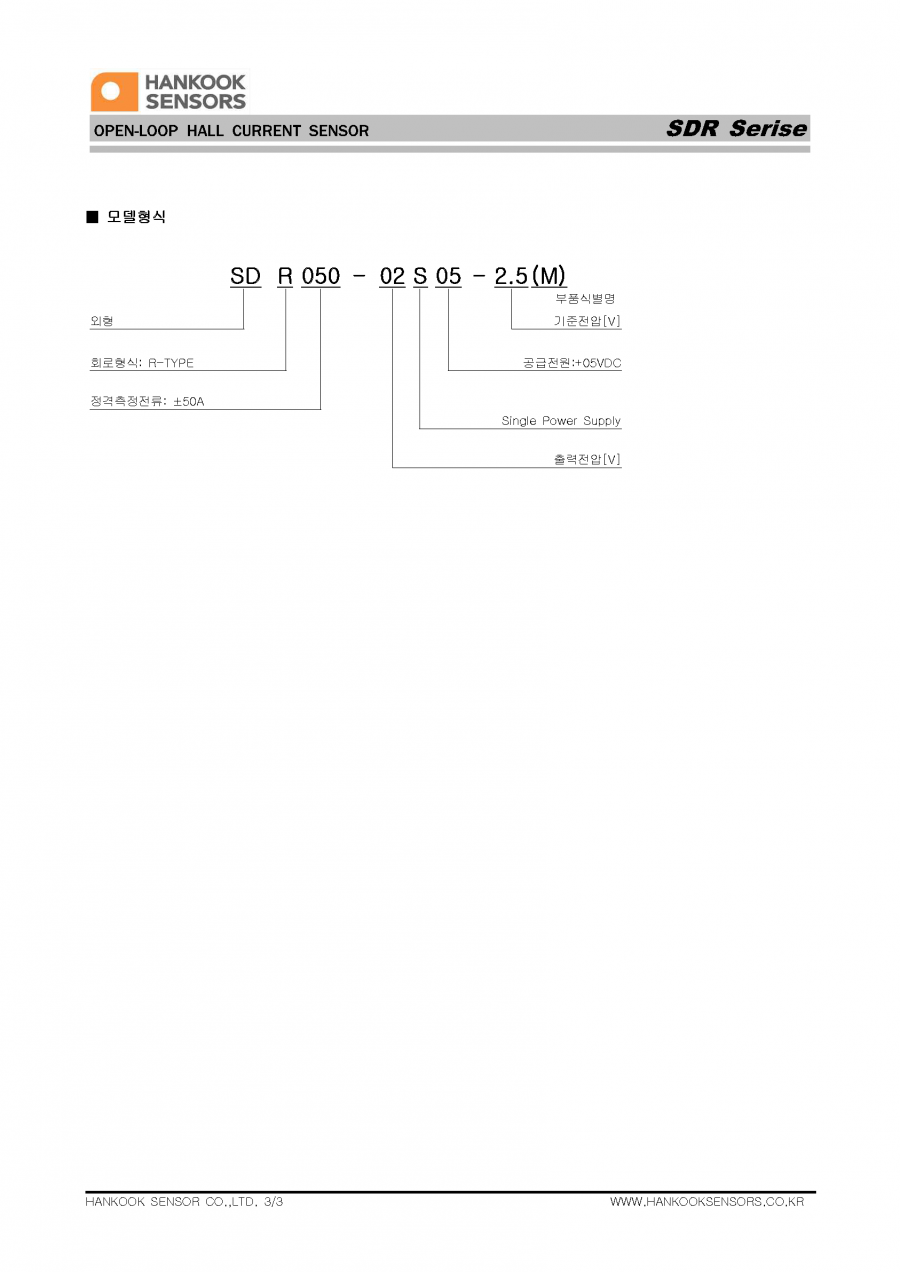

DATA SHEET

  • SDR-TYPE.pdf (137.5K) 50회 다운로드 | DATE : 2019-01-30 15:46:53
