SM3S
- Rated Current (F.S.) : If 100A
- Output Voltage : +4V ±1% at If
- Zero Current Offset : Within 25mV at If = 0
- Linearity of Output : Within ±1.5% of Vh at If : F.S.
- Supply Voltage : +05V ( +6V Max )
- Response Time : 10㎲ec Max. at di/dt = F.S./㎲ec
- Frequency Range : DC ~ AC 10kHz
본문
.

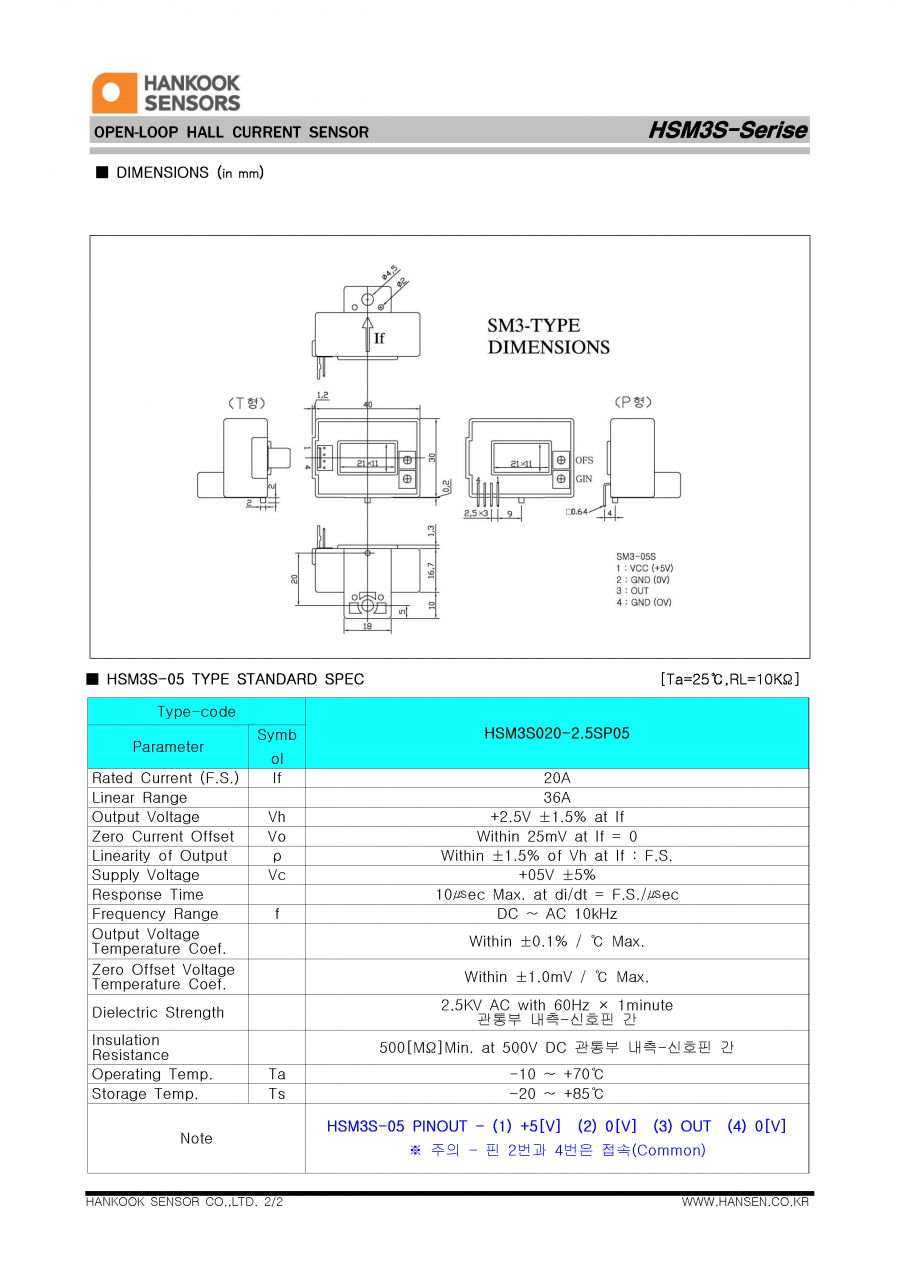

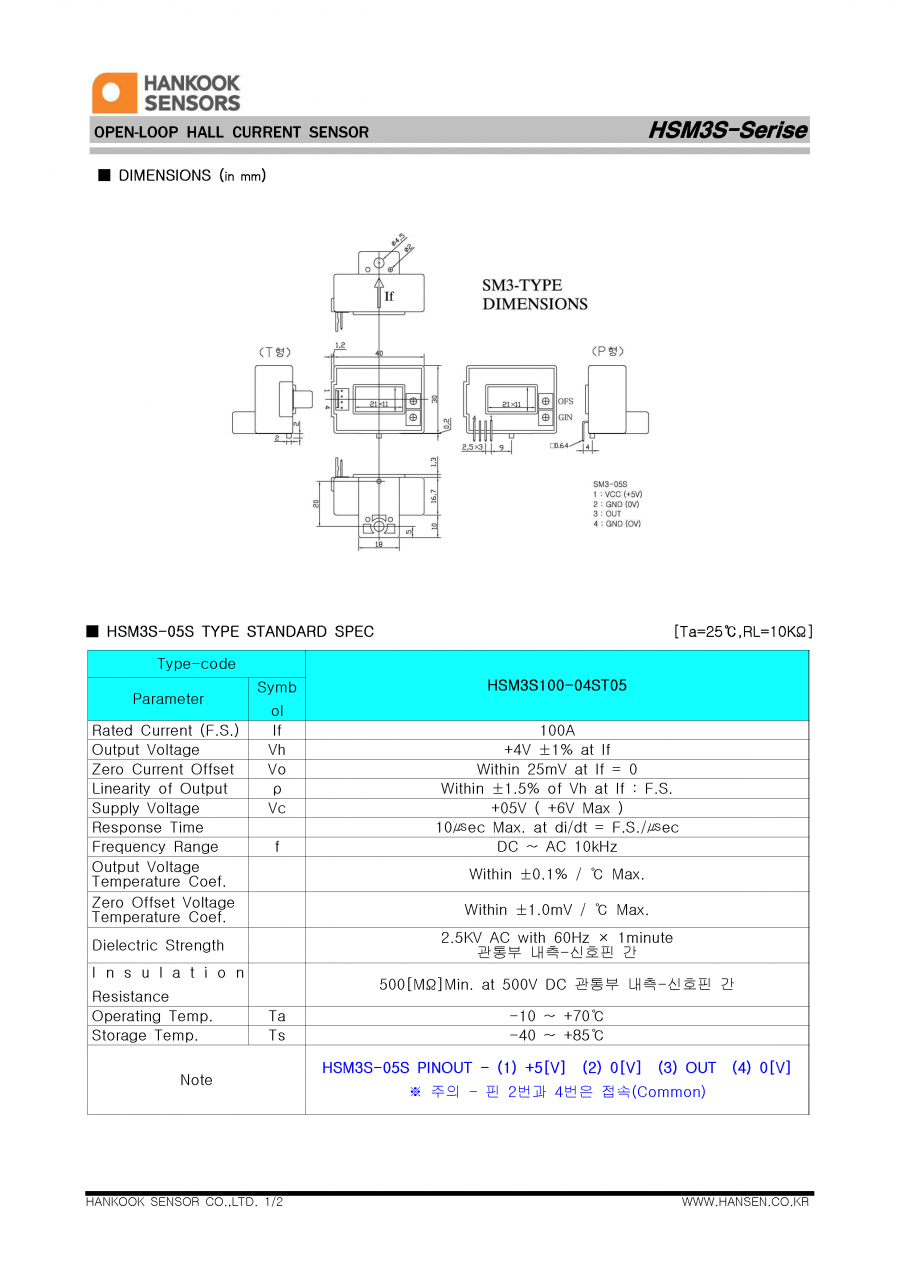

DATA SHEET
- 2-HS-HSM3S.pdf (99.4K) 118회 다운로드 | DATE : 2018-06-27 11:42:58
