SM3A
- Rated Current (F.S.) : 40A ~ 500A
- Output Voltage : ±04V±1% at If
- Zero Current Offset : Within ±20mV at If = 0 Within ±15mV at If = 0
- Linearity of Output : Within ±1.0% of Vh at If : F.S.
본문

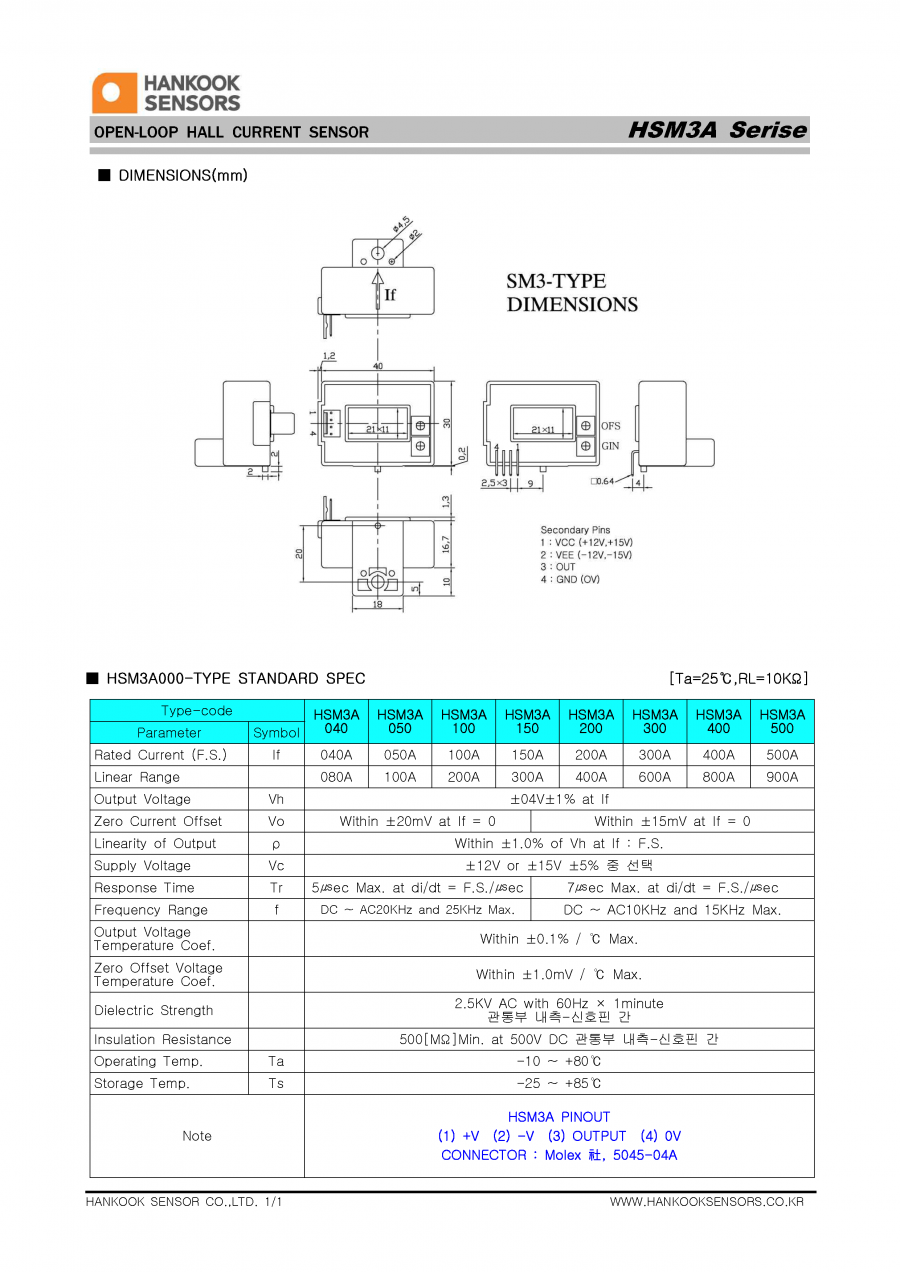

DATA SHEET
- 3-HS-HSM3A.pdf (97.6K) 159회 다운로드 | DATE : 2018-06-27 13:11:59
