KR2CO
- Rated Current (F.S.) : If ±2,000A
- Output Voltage : ±250mV ±30mV at If
- Input Current : 10mA, 표준
- Zero Current Offset : Within ±5mV at If = 0
- Linearity of Output : Within ±1.0% of Vh at If : F.S
- Response Time : 1㎲ Max. at di/dt = F.S./㎲
- Frequency Range : DC ~ 1KHz Max
본문

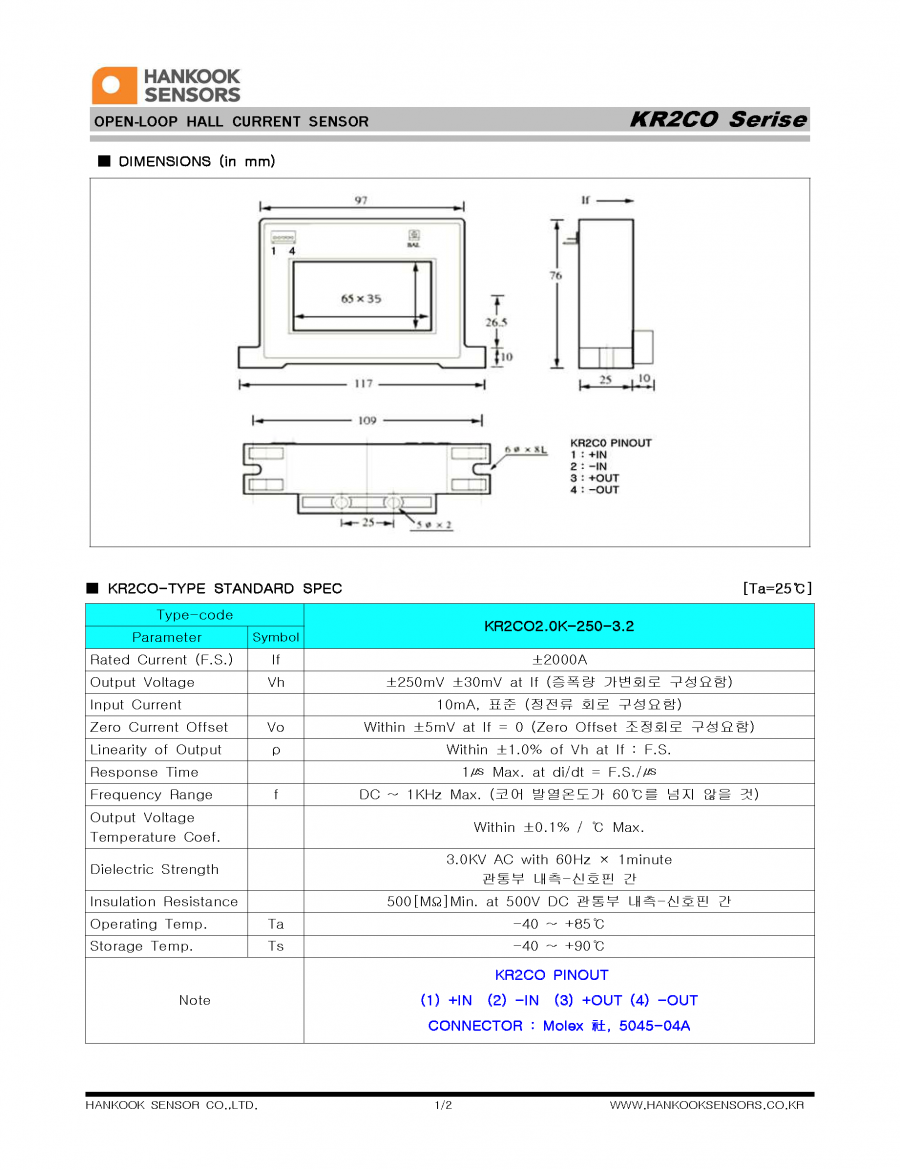

DATA SHEET
- 2-HS_KR2CO2.0K.pdf (79.0K) 105회 다운로드 | DATE : 2018-04-20 12:02:56
