KH-A,S

  • Reted Current : 200AT ~ 2,000AT DC or AC
  • Output Signal : ±4V ±1% at If=F.S.
  • Supply Voltage : ±12V or ±15V ±5%
  • Accuracy : ±1.0% at IPN, TA = 25℃
  • Linearity : ±1.0% of Vh at If = F.S.
  • Response Time : <15㎲
  • Thermal Drift : ±0.1% /℃

본문

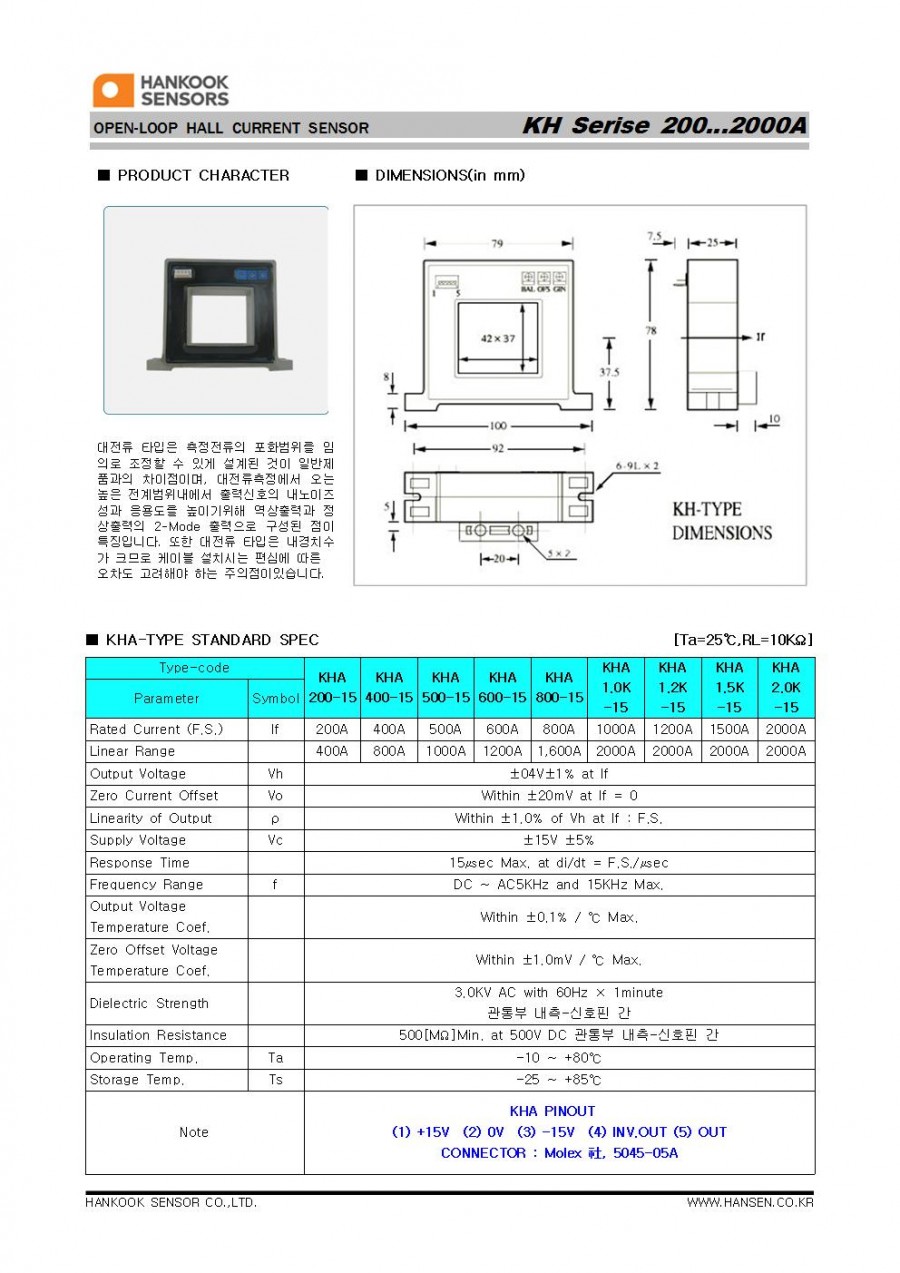

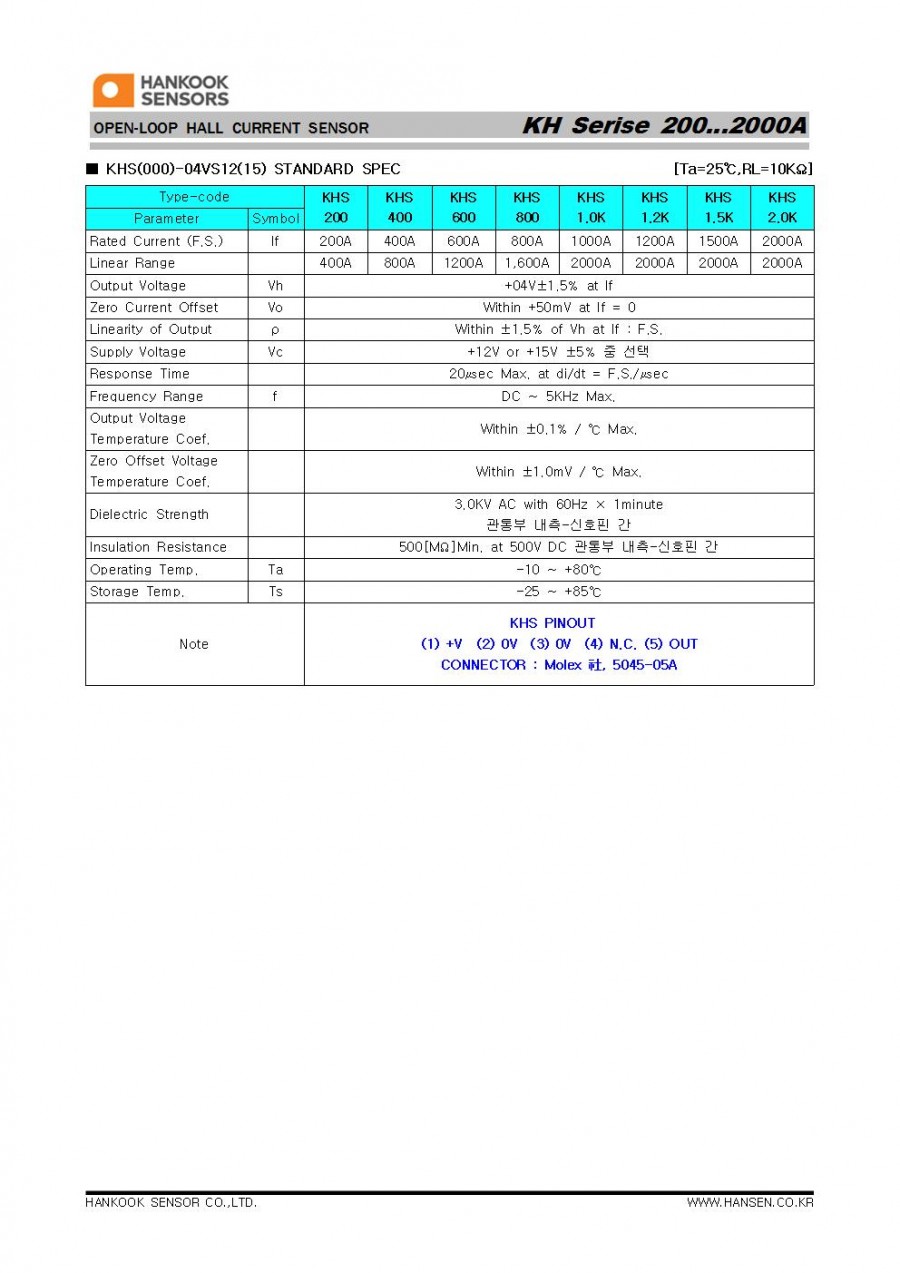

DATA SHEET
