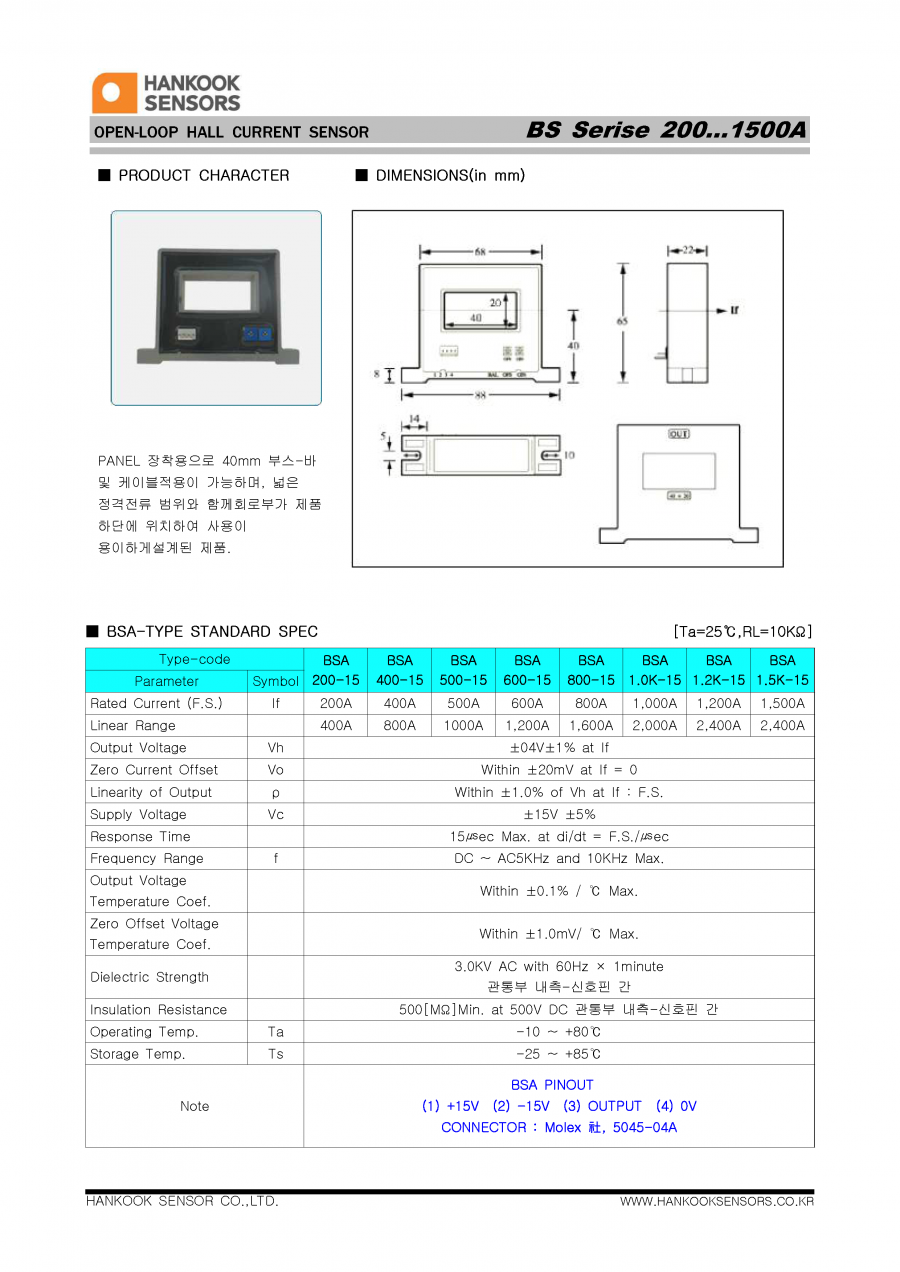

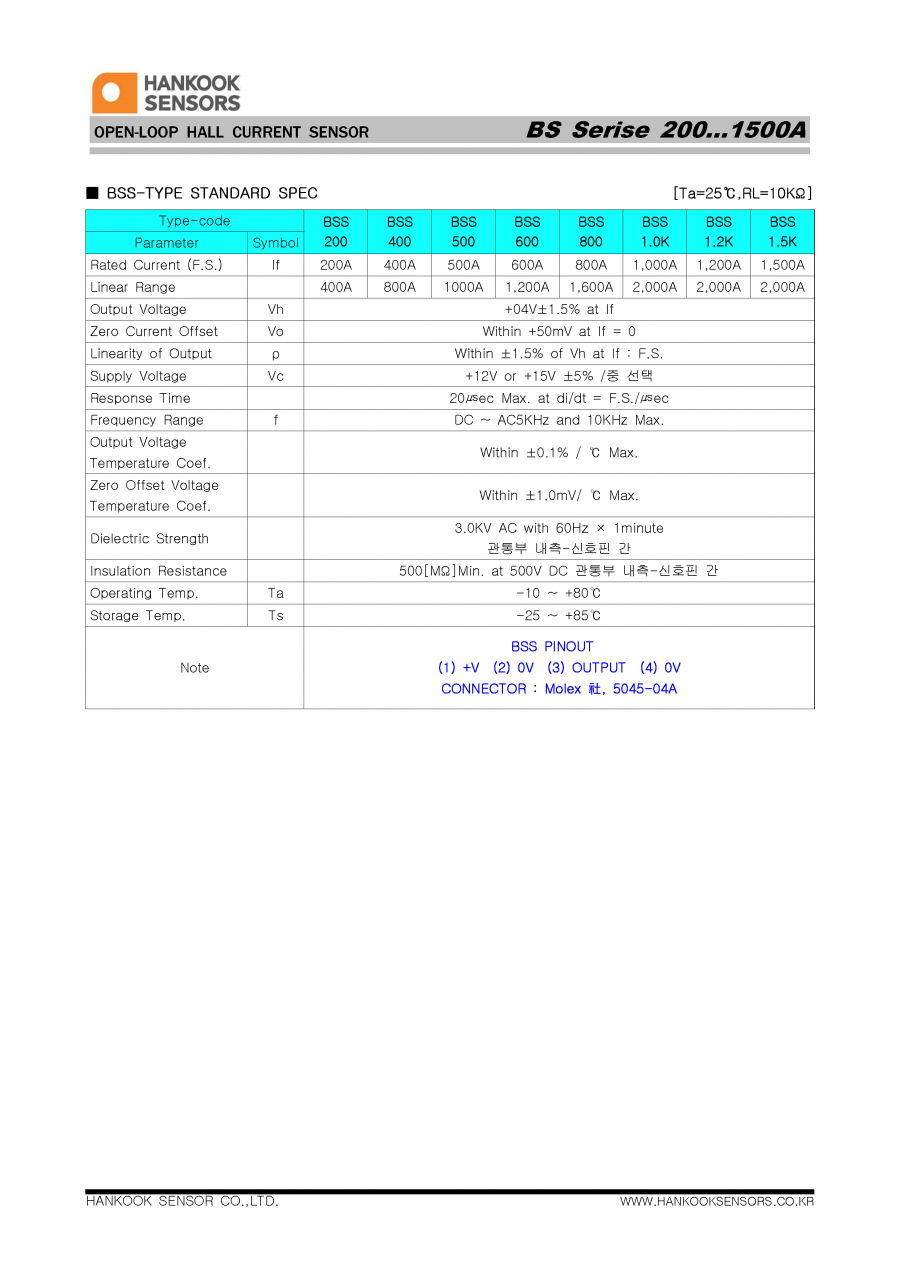

BS-A,S > 각형

BS-A,S

• Reted Current : 200A ~ 1,500A DC or AC
• Output Signal : ±4V ±1% at If=F.S.
• Supply Voltage : ±12V or ±15V ±5%
• Accuracy : ±1.0% at IPN, TA = 25℃
• Linearity : ±1.0% of Vh at If = F.S.
• Response Time : 15㎲
• Thermal Drift : ±0.1% /℃
