CKPR

  • Rated Current (F.S.) : 50A ~ 750A
  • Output Voltage : Ref.2.5[V]±02V±1.5% at If
  • Zero Current Offset : Ref.2.5[V], Within ±20mV at If = 0
  • Linearity of Output : Within ±1.0% of Vh at If : F.S.
  • Supply Voltage : +05V ±5%
  • Vh - Response Time : 15㎲ec Max. at di/dt = F.S./㎲ec
  • Frequency Range : DC ~ 10KHz

본문

.

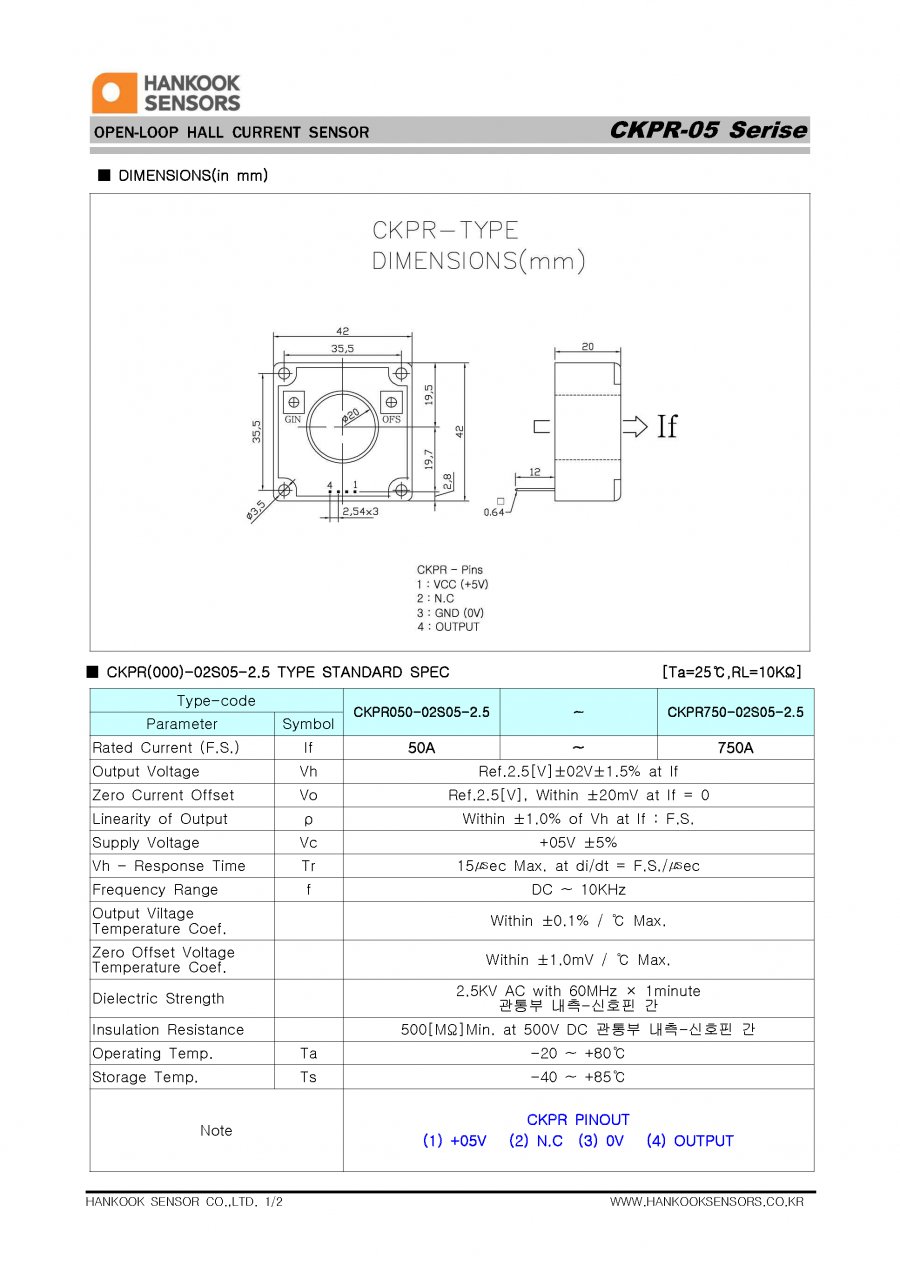

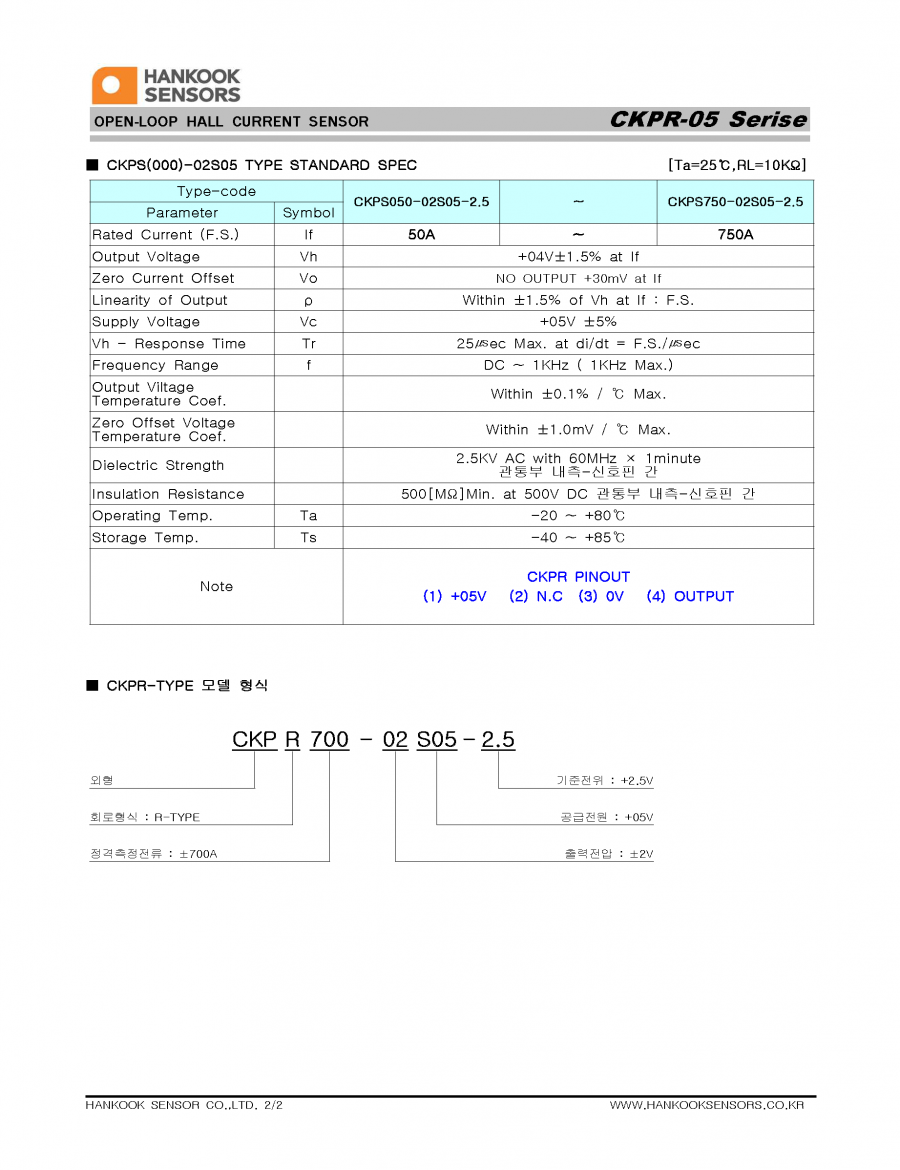

DATA SHEET
