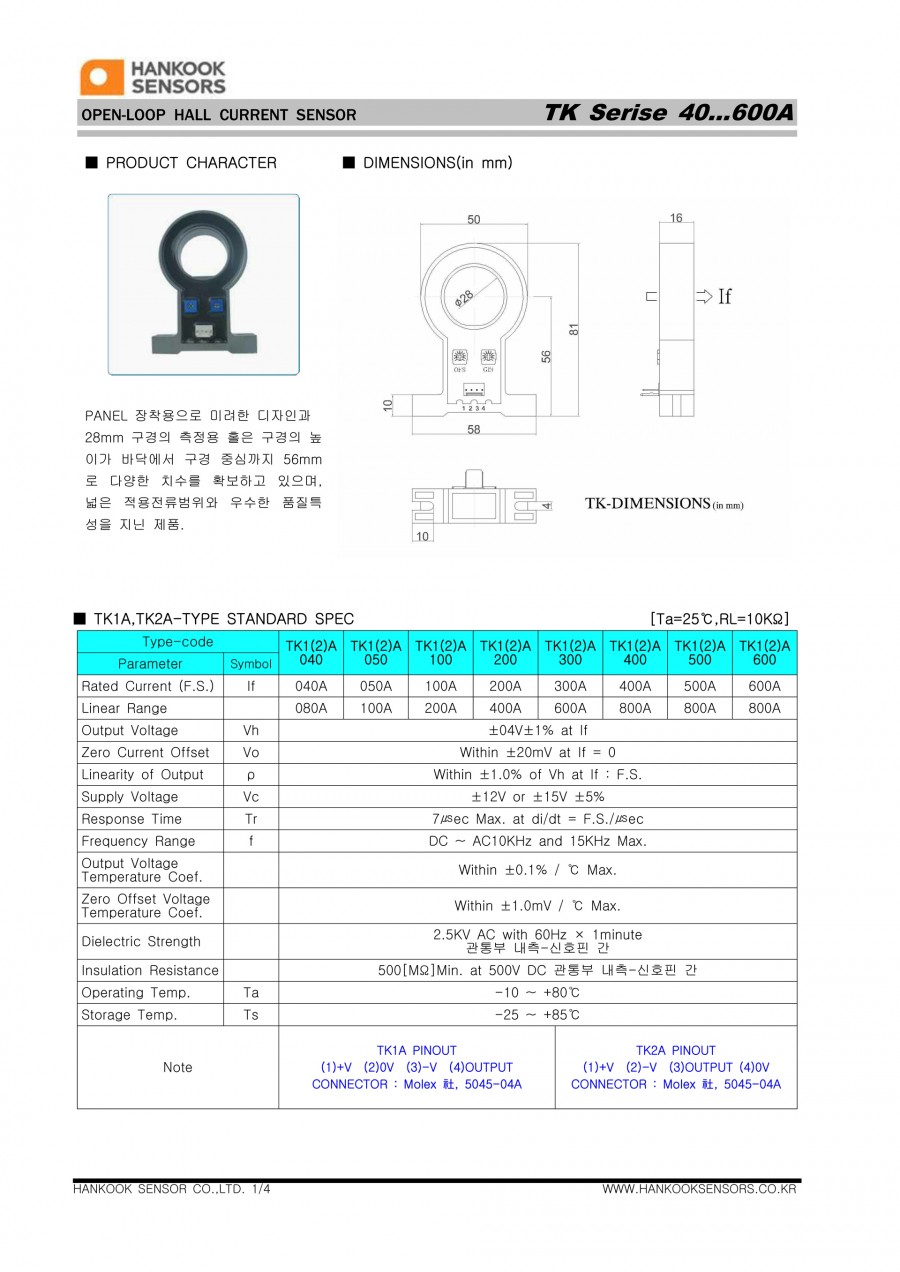

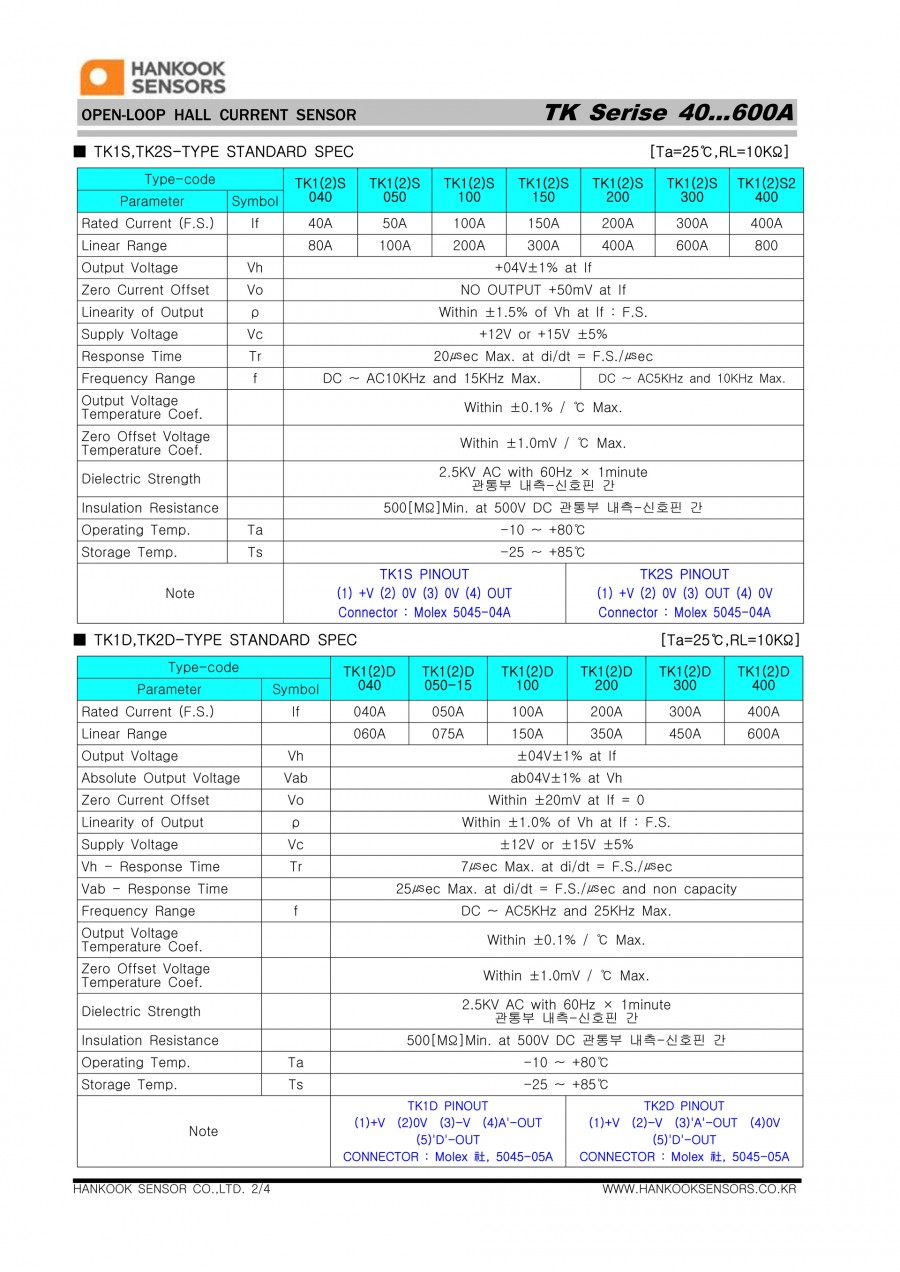

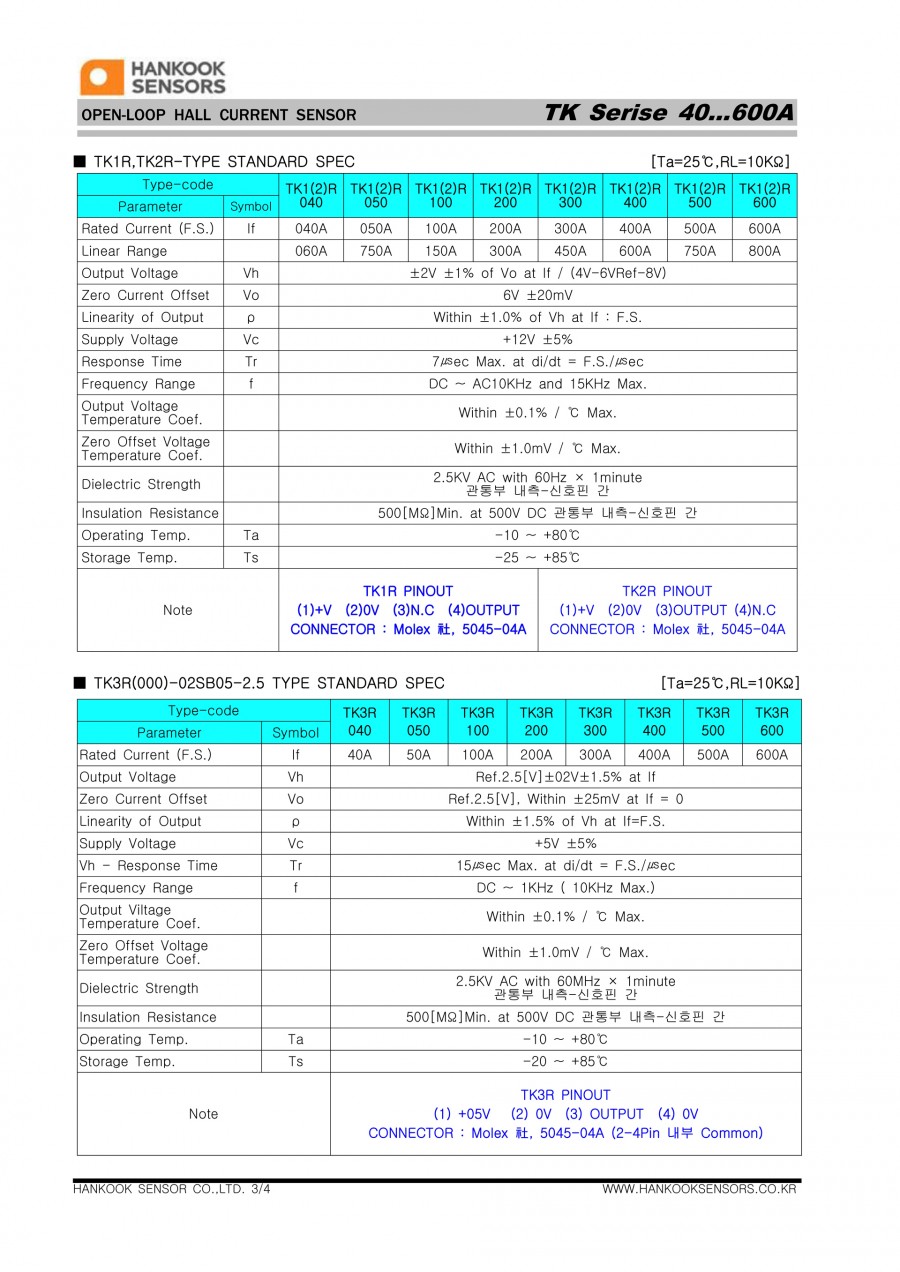

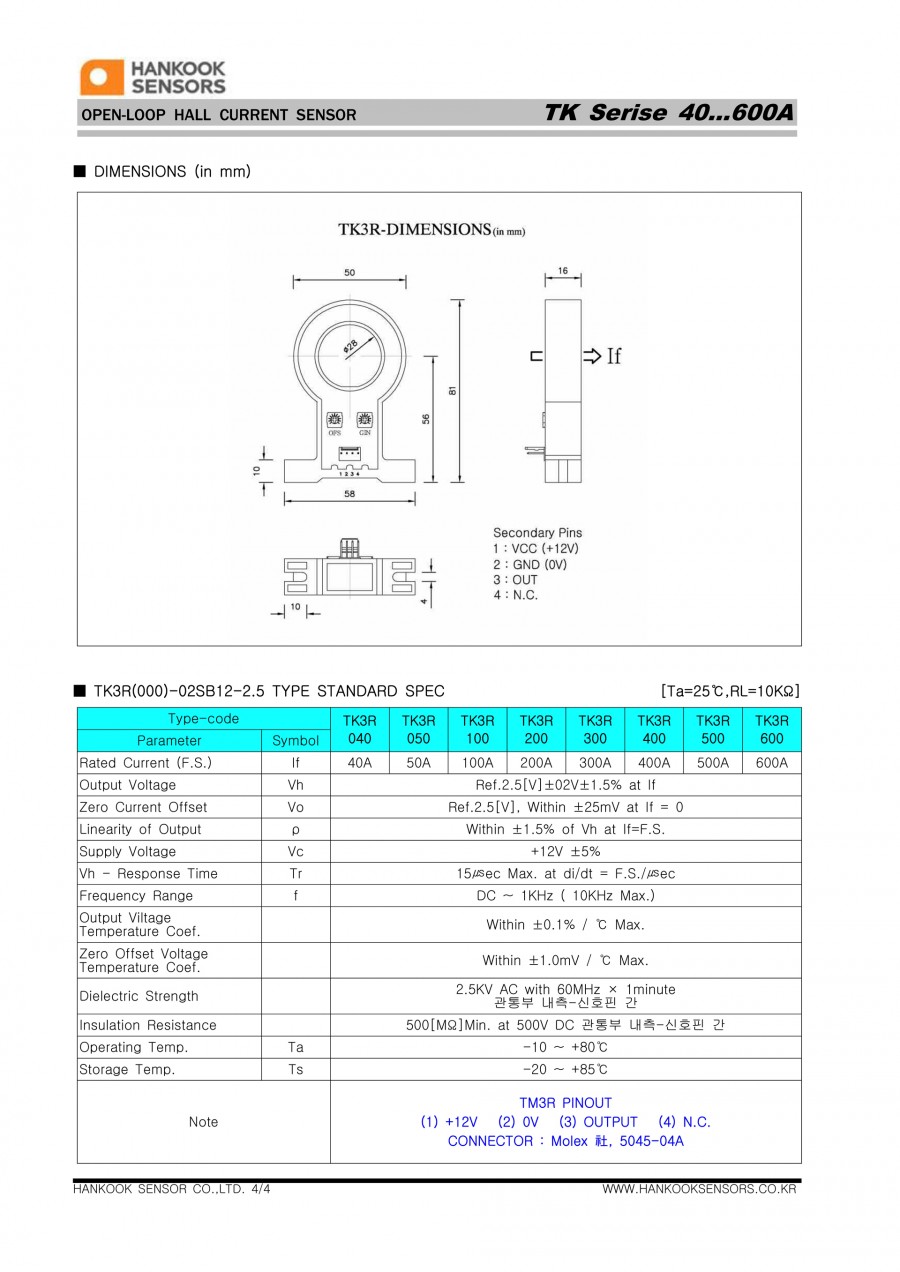

TK-A,S,D,R
- Reted Current : 40A ~ 600A DC or AC
- Output Signal : ±4V ±1% at If=F.S.
- Supply Voltage : ±12V or ±15V ±5%
- Accuracy : ±1.0% at IPN, TA = 25℃
- Linearity : ±1.0% of Vh at If = F.S.
- Response Time : 7㎲ ~ 20㎲
- Thermal Drift : ±0.1% /℃
